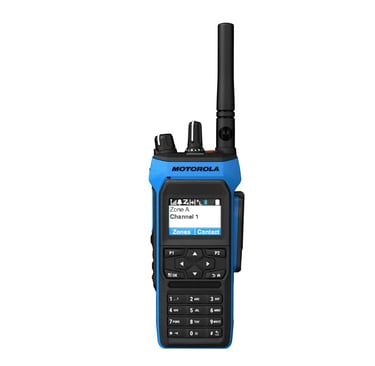

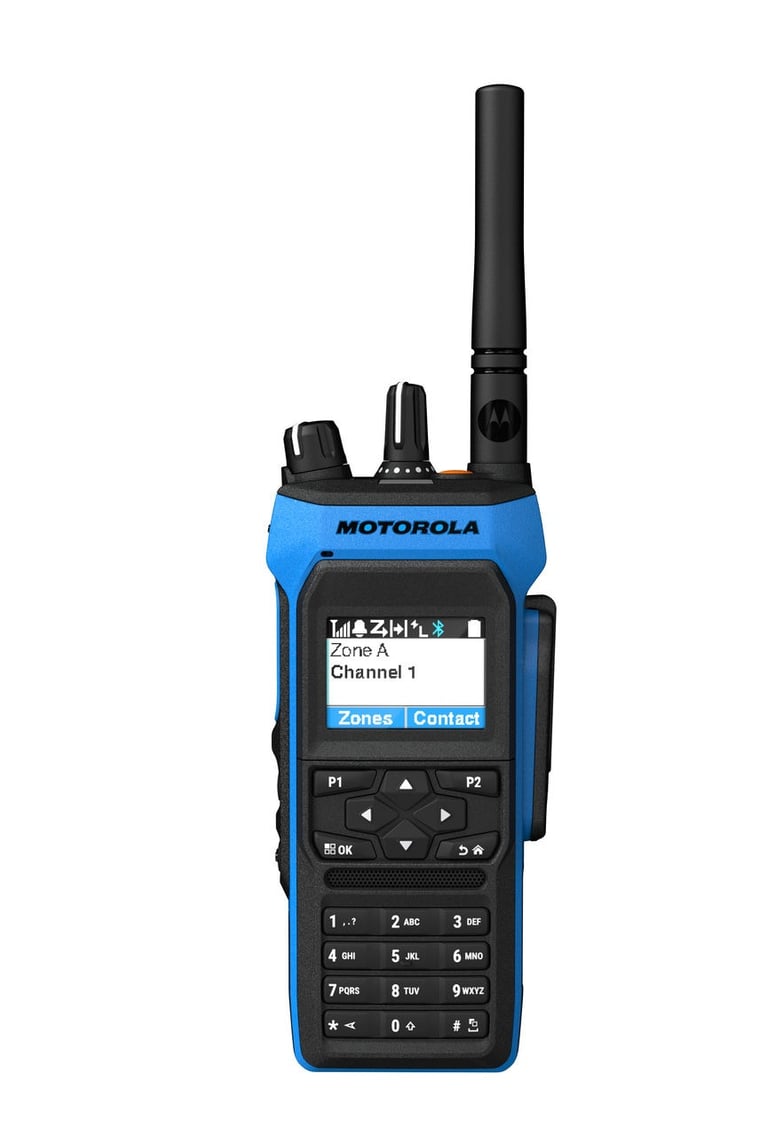

Motorola Solutions R7Ex FKP

MOTOTRBO R7Ex is intrinsically safe for use in potentially explosive environments and helps users collaborate to work more safely.

When workers operate in potentially explosive environments like oil and gas operations, chemical production and manufacturing processes, incidents can be costly or even life threatening. Those workers need equipment they can trust to operate safely. MOTOTRBO R7Ex is ATEX and IECEx certified for use in areas where flammable gases, vapours, mist and dust may be present, and its prominent blue colouring makes it easy to identify radios that are safe to use. R7Ex will even warn the user if a non-ATEX battery has been fitted, helping prevent potential fire risks.

Digital and analogue signalling
Automatic acoustic feedback suppression
1.7” 132 x 90 px. display1
Wi-Fi 2.4/5.0 GHz1
WPA3 Wi-Fi security protocol compliant
Bluetooth® Core Version 5.21
GNSS location tracking
Modern, intuitive user experience
Full suite of accessories, tested with the radio to ensure ATEX/IECEx certification for the full solution
Sleek and ergonomic form factor
AI-trained Noise Suppression
Single microphone noise cancellation (SINC+)
Intelligent Audio
IMPRES™ technology
Programmable loudness up to 108 phons
Dual click volume knob controls on/off/volume and Volume Boost • Simple audio configuration
6 (FKP)/4 (NKP) programmable buttons
Up to 19 hours (IIA) or 23.5 hours (IIC) of battery life
IP68 waterproof up to 2 metres for 2 hours per ATEX/IECEx specifications
IP66 (concentrated water jet pressure) per ATEX/IECEx specifications
ATEX, IECEx and maritime regulations certified • Disinfectant and decontamination substance resistant housing5
Rugged to MIL-STD 810

R7Ex Brochure

Performance Characteristics

Frequency band

VHF, UHF

Standard battery chemistry type

Lithium Ion

Battery life (based on a 05 05 90 duty cycle)

19 hours in digital mode
16 hours in analogue mode

Dimensions H x W x D (with standard battery)

138.5 x 56.7 x 37.8 mm (5.45 x 2.23 x 1.49 in)

Weight (With 1400mAh LiIon battery)

455.5g (16.1 oz)

brown and white building during night time

Features

Best-in-class Audio - Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level

Text Messaging - Send pre-programmed update messages to team members when radio communications need to be delivered without interrupting workers or guests

Integrated GPS - Locate mobile work teams using integrated GPS

Emergency Button - Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation

Security - Three levels of scrambling or encryption built-in for increased security: 16-bit Basic Privacy, 40-bit Enhanced Privacy or 256-bit AES256 encryption.

Transmit Interrupt - Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

PMAD4131A: Motorola Atex DP Stubby Antenna (160-174 Mhz)
PMAD4132A: Motorola DP4000 Atex Antenna VHF 22CM (136-174 Mhz)
PMAD4130A: Motorola VHF Stubby Antenna Non-GPS 11cm (147-160 Mhz)
PMAE4081A: Motorola DMR UHF GPS Folded Monopole (403-433 Mhz)
PMAD4126A: Motorola GPS Helical EX Antenna (136-147)

PMMN4067B: Motorola Atex Remote Speaker - DP Series
GMMN4580: Motorola Helmet Com unit, HC-2 - Bone conductive microphone with dual speaker
PMMN4110A: Motorola Impres EX Omni RSM STD Cbl-NeX
PMMN4094A: Motorola Atex Accessory Kit Impres Atex Noise Cancelling RSM

PMLN6086A: Motorola Atex Belt Clip 2.5"
PMLN6096A: Motorola Hard Leather Case CC 2.5" Swl Plain Atex DP Series
PMLN6099A: Motorola Soft Leather Case CC 2.5" Swl Key Atex DP Series

Accessories

Antennas

Audio

Carry Accessories

Chargers

NNTN7616D: Motorola Chgr Imp Veh Ext EU
NNTN8525A: Motorola DP TRBO Travel Chgr
PMPN4290A:Motorola Impres 6-Way Multi-Unit Charger with UK cord for radio or battery
WPLN4219: Motorola DP Multi Unit Chgr with Disp - US

RMN5123A: Savox Atex HC-1 Headset

Earpieces
