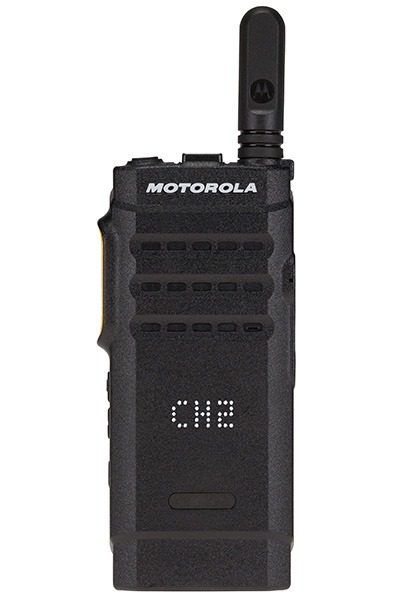

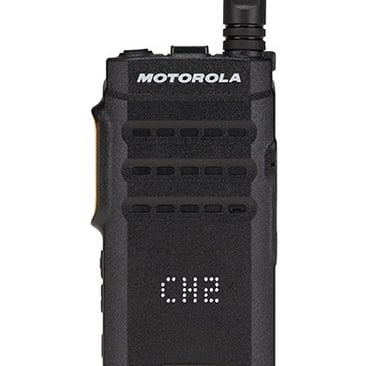

Motorola Solutions SL1600

Reliable Communications

MOTOTRBO™ SL1600 provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile. Whether you're working in the field or at a black-tie event, the SL1600 is boldly designed to keep you efficiently connected.

Measuring only 22mm thick, the SL1600 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL1600 the perfect work partner. It can be easily carried in pockets or bags without snagging or bulging.

Designed for easy and intuitive use, the SL1600 has a side volume control, dedicated power button, prominent push-to-talk button, and top toggle channel switch to enable quick one-hand access. Channel “fast toggle” allows users to scroll through 10 channels at a time.

The SL1600 is outfitted with the latest technology for performance and ease of use. The shatterproof Active View display uses a matrix of LEDs behind the radio housing to communicate radio information and shuts off when not in use to conserve battery life. The SL1600 features Range Max technology: an advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.

The SL1600 is built to last. IP54 rated for dust and water resistance, it can be used even in harsh environments. This radio can survive many drops and tumbles. It has also been proven tough in Motorola’s gruelling Accelerated Life Test, where the radio is tested against a simulated 5 years of hard service before it is accepted.

Performance Characteristics

Frequency range

VHF - 136 - 174 MHz;
UHF - 403 - 470 MHz

Power

1W (Minimum), 2W (Maximum, Analogue), 3W (Maximum, Digital)

Battery life (based on a 05 05 90 duty cycle)

Analogue 11.8 hours, Digital 14 hours

Dimensions H x W x D (with standard battery)

126 X 55 X 22 mm (4.95 X 2.17 x 0.87 in)

Weight (with standard battery)

VHF: 169g (5.96 oz), UHF: 166g (5.84 oz)

Features

Ultra-Slim - Measuring only 22mm thick, the SL1600 redefines portability. It can be carried easily in a pocket or bag without catching or bulging.

Simple Operation - The SL1600 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.

Dual Capacity Direct Mode - Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel—without the need for a repeater.

Voice Announcement - Audible prompts confirm operations on your radio, allowing you to keep your eyes on the job.

Active View Display - Shatterproof Active View display uses hidden LED lighting to communicate channel, radio, and volume information crisply in both daytime and night time situations.

Analog/Digital - The SL1600 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.

IP54 Rated - Rugged and reliable, the SL1600 is splashproof and dustproof for use in harsh environments.

Range Max Receiver - An advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life

PMAD4155A: Motorola VHF Whip Antenna (144-156 Mhz)
PMAD4145A: Motorola VHF Stubby Antenna 5cm (144-156 Mhz)
PMAD4146A: Motorola VHF Stubby Antenna 5cm (156-174 Mhz)
PMAE4099A: Motorola SL1600 Series UHF Stubby Antenna (445-480Mhz)
PMAE4094B: Motorola SL1600 Series UHF Stubby

CB000262A01: Motorola Programming Cable Micro USB
PMKN4128A: Motorola DP1000 Series Portable Prog Cable

PMLN7128A: Motorola SL1600 Carry Accessory-belt Clip, Heavy-duty Swivel Belt Clip
PMLN7076A: Motorola SL1600 hand Strap

Accessories

Antennas

Cable

Carry Accessories

Chargers

PMLN7163A: Motorola SL1600 Desk Top Single UK Chgr
PMLN7162A: Motorola Multi Unit Desk Top Chgr for SL1600 - TLK 100
PMLN7110A: Motorola Single Unit Chgr EU

PMLN7189A: Motorola Swivel Earpiece In-line Mic & PTT
PMLN7158A: Motorola Acoustic Tube Earpiece In-line Mic-PTT
PMLN7156A: Motorola Earbud W In-line Mic-PTT, Magone
PMLN7157A: Motorola Two Wire Earpiece with Clear Acoustic Tube (Black)

Earpieces
