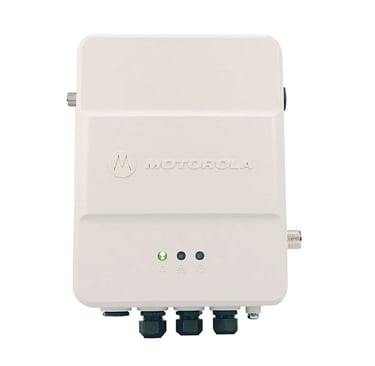

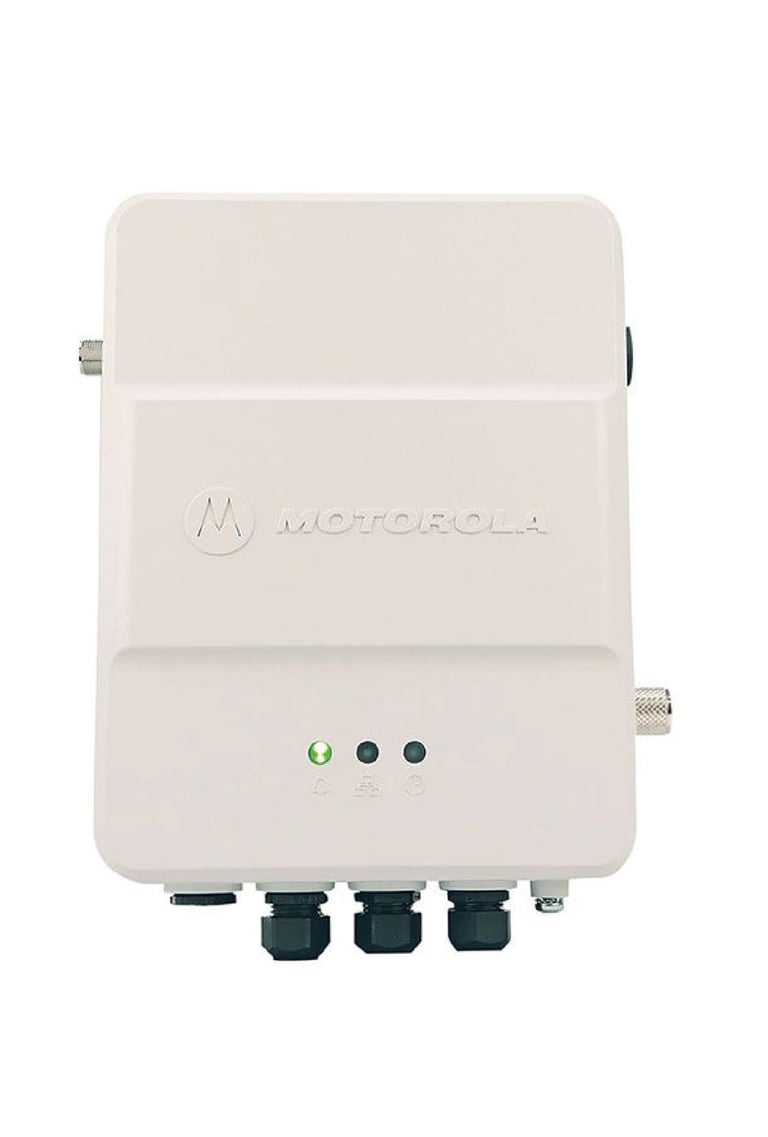

Motorola Solutions SLR1000
Coverage without complications
Keeping your team connected requires uninterrupted radio coverage. Using the SLR 1000 repeater, you can easily extend the range of your network through dead zones and across remote locations, so everyone’s within reach. Deploy the SLR 1000 indoors or outside - it’s IP65 rated for dust and water protection. The compact size gives you more installation options. And a low power, fanless design uses less space and energy.
Performance Characteristics
Frequency range
VHF: 136-174 MHz, UHF: 400-527 MHz
Output power
1-10 W
Dimensions* (H x W x D)
279 x 229 x 102 mm (11 x 9 x 4 in)
Modes of Operation
Half Duplex / Duplex
Weight*
4.54 kg (10 lbs)
Features
Protected For Your Environment: Improve your coverage in the way that works best for you. With an IP65 rating for water and dust protection along with a fanless design, you can deploy indoors or outside without worry.
Deploy In More Places: Easily mount the SLR 1000 on walls or poles, and take advantage of additional locations to improve coverage. Plus, its compact, fanless design means fewer HVAC planning headaches and with more deployment options.
Cost-effective Coverage: Increasing your coverage doesn’t have to mean increasing your cost of ownership. The SLR 1000 features a low power, fanless, space-saving design that reduces energy and potential installation costs.
Grows With You: The SLR 1000 works with both conventional and trunking systems that support voice and data, so you can continue to use it as you expand your network. For conventional systems, deploy the SLR 1000 with Extended Range Direct Mode, and expand your range without having to purchase additional frequencies.
HKAE4005: Motorola Antenna Whip, SLR1000 Main antenna 490-530Mhz
HKAE4004: Motorola Antenna Whip, SLR1000 Main antenna
HKFE4000: Motorola Duplexor 400-430 Mhz
HKFE4002: Motorola Duplexor 480-527 Mhz
HKVN4212A: Motorola Network Application Data Interface Key for DR3000 SLR5500
HKVN4041A: Motorola Multiple Rdac Systems - Single Key
HKVN4063A:Motorola Linked Capacity plus Lic Key - Incremental Licence - Single Key
HKVN4240A:Motorola Mid-tier Repeater Digital Voting Licence - Single Key
BR000143A01: Motorola SLR1000 Wall Mount Bracket
Accessories
Antennas
Duplexor
Programming software
Wall Bracket
